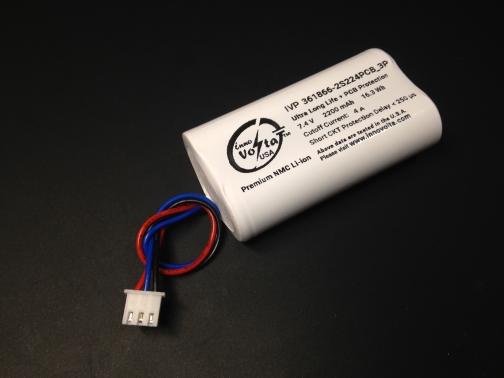

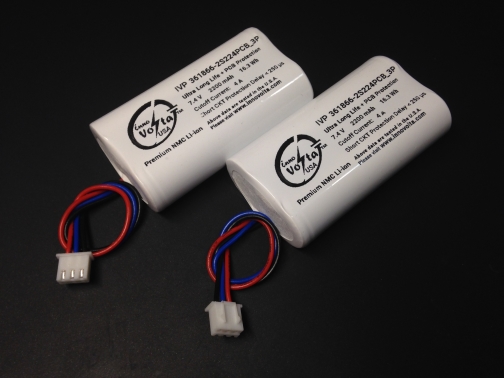

innoVolta IVP361866-2S224PCB_3P

High Capacity & High Energy:

  • 2,200 mAh (refer to the Real-Time Test Chart), 16.3 Wh, 7.4 V (Nominal)

Ultra Long Life:

  • Selected authentic EV industrial grade low IR NMC power cells;
  • Real-Time Tested Cycle Life: about 2,000 deep cycles
  • Lifetime capacity: 2,470 Ah (Power Phase) plus 1,480 Ah (Energy Phase); about 3,950 Ah in total
  • IR matching < 2 mOhm
  • Capacity Matching < 20 mAh
  • Use a CC/CV charger with 2S setting
  • 4X Lifetime capacity if contrasted with regular packs made with normal 500-cycle cells

Safety:

  • Made with industrial standard PCB/PCM (Protection Circuit Board/Module)
  • Individual cell carries UL and RoHS certificates at least, CE and TUV certificates are optional
  • Never worry about an explosion owing to an accidental short circuit or a human mishandling

Convenience:

  • Assembled with a JST XH-3 female connector
  • The polarized JST XH-3 connectors help avoid an accidental connection in wrong polarity
  • 4″ long flexible wires rated UL 1007, 22AWG, 80 degC, 300V, VW-1

Description

The innoVolta IVP361866-2S224PCB_3P battery pack is designed with great care for application categories like “General Purpose”,  “Security Equipment”, and “Inventory Control Device”.

The innoVolta IVP361866-2S224PCB_3P battery pack is made of selected EV industrial grade low IR NMC power cells from the authentic cell manufacturer. The real time tested cycle life of the individual cell is above 2,000 deep cycles (please refer to the test chart below). Regular Li-ion cells that last for 300 ~ 500 cycles are common. Ultra long 4X lifetime capacity is at your disposal if it is contrasted with other packs made with 500-cycle cells.

With the premium high capacity energy cells, we still need to match each pair of cells before the assembly so that the whole battery pack can achieve consistent long life feature.  At innoVolta, we uniformly test every cell, closely match them in-house, and assemble the well matched cells (i.e. mass production capability with bin range as narrow as 20 mAh for capacity bins and 2 mOhm for ACIR bins) into the branding innoVolta battery packs. We proudly assemble the innoVolta battery packs in the USA. Most of other battery pack manufacturers are unable to do the in-house cell matching. They assume that all cells packed inside a box are all matched, which may not be true because even authentic cell manufacturers may loosen their cell matching specification (i.e. with bin range as wide as 50 ~ 60 mAh for capacity bins and 6 ~ 9 mOhm for ACIR bins) to consolidate the stored cell residues from several production batches. It can be even worse if smaller quantity can’t be purchased directly from the authentic cell manufacturers, the boxed cells can be further compromised through the supply chain. Some distributors may not have proper warehouse conditions to protect their cells in storage from being rapid degrading. They may further assort the residues of several  inventory batches into one box to ship. All these compromised quality issues are completely prevented at innoVolta.

With the built-in PCB/PCM, you are free of any worry about the unexpected explosion resulted from an external short circuit to this battery pack. The IVP361866-2S224PCB_3P will cut off its output power when the output current rises above 4.0 A (or 4.3 A typical). Besides the short circuit protection, it is also featured with the over-discharge and over-charge protection.  Thus, you may use this battery pack with peace.

Not like a normal battery pack made with flying leads, we assemble the IVP361866-2S224PCB_3P battery pack with the popular JST XH-3 connector for perfect CC/CV Balance charging with popular LiPo Compact chargers. The JST XH-3 connector is polarized. You will never worry about damaging your electronic device or charger by an accidental connection in wrong polarity.

If you like to specify your own connectors with volume order, we will make it to your specification.

Specifications

  • Brand: innoVolta USA
  • Model: IVP361866-2S224PCB_3P
  • Capacity: 2,200 mAh (please refer to the Real-Time discharge chart below)
  • Energy: 16.3 Wh
  • Nominal Voltage: 7.4 V
  • Standard Charge Current: 1.1 A (must use CC/CV charger with 2S setting)
  • Short_Circuit Protection Delay: < 250 micro second ( 200 micro second typical)
  • Over-Discharge_Current Protection: 4.0 A (4.3 A typical) cut off
  • Over-Discharge Detection Voltage: 4.8 +/- 0.1 V
  • Over-Discharge Release Voltage: 6.0 +/- 0.1 V
  • Over-Charge Detection Voltage: 8.6 +/- 0.1 V
  • Over-Charge Release Voltage: 8.2 +/- 0.1 V
  • Battery Pack Size (norminal): 36.5 mm Wide * 18.3 mm High * 66.5 mm Long
  • Weight: 92.0 g (average)
  • Connector: JST XH-3 female socket (other type of connector may be specified)
  • Wire: Red/Blue/Black, 4″ long, UL 1007,  24 AWG, 80 degC, 300V, VW-1
  • Discharge: Output power by 2 wires in Red/Black (P+/P-)
  • Charge: Input charging by 3 wires in Red/Blue/Black (P+/BM/P-)

Engineering Test Charts

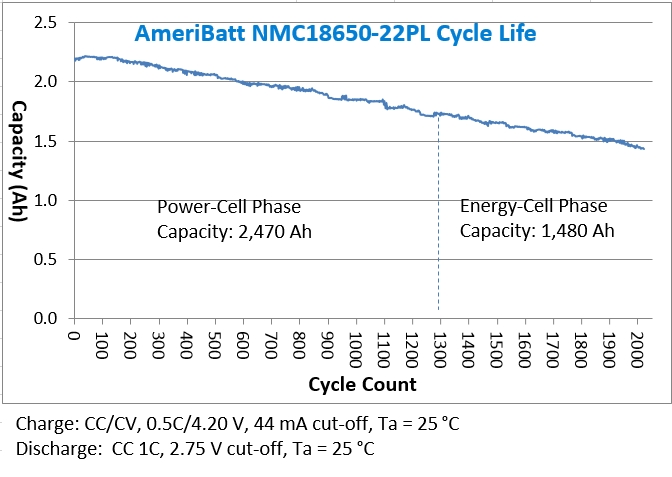

Real-Time Deep Cycle Life Test (Cells)

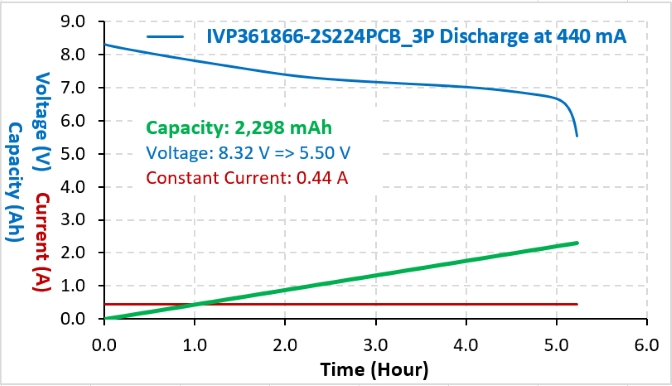

Real-Time Discharge Test (Packs)
