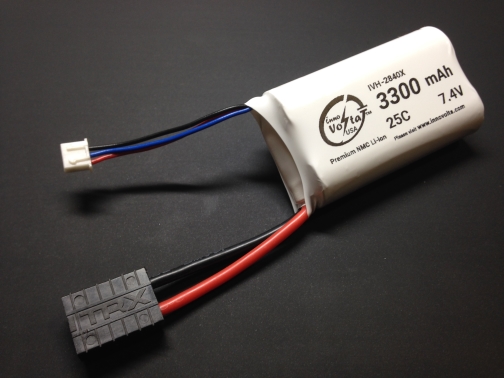

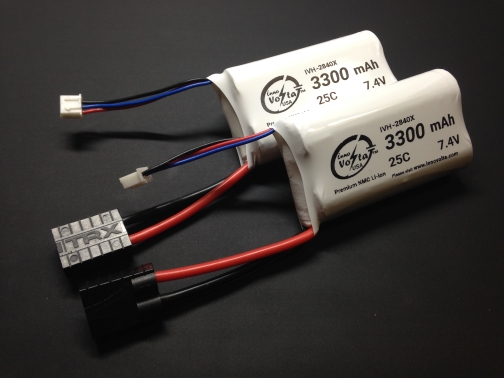

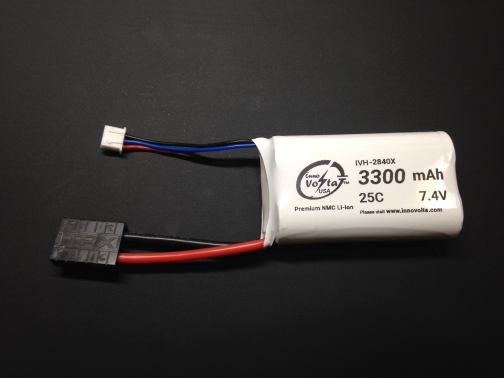

innoVolta IVH-2840X

High Capacity, High Energy, and High C-Rate:

  • 3,300 mAh, 24.4 Wh, 25C, 7.4 V (Nominal)
  • 70mm x 41mm x 21mm, 125 g
  • TRX High-Current female connector for direct model installation
  • JST XH-3 female connector for CC/CV balance charging

Longer Run Time by NMC-High-Drain ™ Technology:

  • The innoVolta IVH-2840X Battery is optimized with the NMC-High-Drain™ technology, which means the NMC battery can store the same 3,300 mAh at less weight. In other word, the NMC-High-Drain ™ cell performs higher specific energy than the LiPo cell. With the reduced weight, the NMC-High-Drain ™ battery delivers longer run time per discharge than the LiPo battery.

Ultra Long Life:

  • The authentic Li-ion cells made by the NMC-High-Drain ™ technology performs lower IR and lower aging rate of IR which are  major contributors to the achievement of ultra-long life. To understand why IR and the aging rate of IR are the major factors to retire a battery, please refer to this blog.
  • The reason why the R/C LiPo battery doesn’t allow its operation below 3.7 V/cell is because the cathode chemical compound is made of LiMn2O4, which can only store less than 10% energy below 3.7 V/cell. The 2S LiPo will get damaged if you abuse it below 7.4 V! Contrast to the LiPo battery, the NMC-High-Drain ™ battery provides a wide spectrum of energy storage, which stores 90% energy above 3.4 V/cell. You may safely discharge the innoVolta IVH-2840X battery down to 6.8 V. With the ability to discharge and charge the NMC battery at lower voltage, the electrolyte can stay less volatile, which greatly reduces the rate of SEI formation and conserves more active Li+ ions and results in much longer cycle life.
  • According to the Real-Time Cycle Life Test, the LiPo battery only lasts 150 ~ 200 deep cycles but the NMC-High-Drain ™ battery lasts up to 1,200 deep cycles. Buying one NMC-High-Drain ™ battery is equivalent to buying 6 ~ 8 LiPo batteries.
  • During the battery pack assembly, matching the cell capacity and IR are very important to obtain the longest battery life. For the innoVolta IVH-2840X, the capacity and IR matching are controlled less than 30 mAh and 3 mOhm to meet the ultra-long life requirement.
  • Important: To achieve the ultra-long life feature, you must use a CC/CV balance charger and set the constant charging current at or below the standard charging spec, which is 1.5A for the innoVolta IVH-2840X battery.

Higher Safety:

  • Individual cells of the innoVolta IVH-2840X meet the UL 1642 and RoHS safety standard.
  • Never worry about an explosion owing to a temporary short circuit by a human mishandling because the inherent low IR generates less heat to raise the battery body temperature.
  • NMC-High-Drain ™ battery will NEVER puff, unlike the LiPo battery.
  • NMC-High-Drain ™ battery also runs cooler due to the inherent low IR.

Convenience:

  • Assembled with a Traxxas high current female connector. You may connect the innoVolta IVH-2840X battery directly to the Traxxas ESC without inserting an R/C adapter.
  • Assembled with a JST XH-3 female connector. You may easily run a balance charge by using a conventional R/C balance charger. For example, the popular LiPro Balance Charger, iMax B6 or its equivalent.
  • The innoVolta IVH-2840X battery can be used on any R/C powered trucks, cars, trains, and boats that have enough space to accommodate the innoVolta IVH-2840X battery.
Category:

Description

The innoVolta IVH-2840X battery pack is developed by the world’s most advanced NMC-High-Drain ™ technology in mid-2016, and it is specially designed for driving the Traxxas R/C model cars (e.g.  1/8 Scale NHRA Funny Car Race Replica, …etc.) It is compatible to the Traxxas 2840X LiPo battery.

Backed up by the NMC-High-Drain ™ technology, the innoVolta IVH-2840X battery pack has stored 3,300 mAh is a lightweight 20650 cylindrical metal housing. The reduced battery weight results in longer run time per discharge. Please switch off the  Low-Voltage Detection to maximize your run time because the innoVolta IVH-2840X battery can be discharged down to 5.5 V and its OCV (Open-Circuit-Voltage) will recover back to about 6.8 V after you cut off the power.

According to the Real-Time Cycle Life Test, the the NMC-High-Drain ™ battery lasts up to 1,200 deep cycles but the LiPo battery only lasts about 150 ~ 200 deep cycles. Buying one NMC-High-Drain ™ battery is equivalent to buying 6 ~ 8 LiPo batteries.

The individual cells of the innoVolta IVH-2840X meet the UL 1642 and RoHS safety standard. Never worry about an explosion or puffing owing to a temporary short circuit by a human mishandling.

The innoVolta IVH-2840X battery pack is assembled with a Traxxas High -Current female connector. It is very convenient because you can install the battery pack to the model directly without extra wiring or connecting adapter.

Finally, to achieve the ultra-long life feature, you must use a CC/CV balance charger and set the constant charging current at or below 1.5A to charge the innoVolta IVH-2840X battery.

Disclaimer: Please do not short this battery! You should use caution to handle this battery because it is not installed with a short circuit protection board. innoVolta assumes no liability for property damage or injury incurred as a result of using this battery or any information contained in this brochure or associated blog post. It is the sole responsibility of the user who decides to use it. If you don’t know how to handle this battery properly, please do not buy it!
