Battery Replacement SurgiTel Eclipse Battery Pack EHL65 by innoVolta IVM361866-2S26CPM Made in USA

Applications:

  • Battery Replacement for Surgitel Eclipse Battery Pack EHL65

Meet Highly Safe Medical Industrial Requirements:

  • Selected Medical Grade, LOW-HEAT, NMC Power Cells
  • In-Cell Construction by Thermal Runaway Safer Material up to 210 Degree C
  • Individual Cell Carries UL 1642 and RoHS Certificates
  • Build-in Reinforced Insulation between Cells
  • Build-in Industrial Grade PCM (Protections: Short Circuit, Over-Charge, Over-Discharge)
  • Never worry about an explosion owing to an accidental short circuit or a human mishandling

High Performance:

  • 7.4 V 2,600 mAh (100% Run Time), or
  • 7.4 V 3,000 mAh (115% Run Time)
  • Higher Short Circuit Protection Current (up to 11.5 A) So That It Can Drive HIGHER-INRUSH-CURRENT Devices

Ultra Long Life:

  • Real-Time Tested Cycle Life (individual cells): Over 1,000 Deep Cycles
  • Excellent Cell Matching ACIR @1 kHz < 2 mOhm/bin
  • Excellent Cell Matching Capacity < 20 mAh/bin

Convenience:

  • Assembled with 2.5 mm pitch 2-circuit Molex 5264 connector housing and Molex 5263 crimp terminal
  • Avoiding any accidental inverse polarity of power connection because Molex 5264 connector is polarized.
  • 2″ long flexible wires rated UL 1007, 22AWG, 80 degC, 300V, VW-1

Description

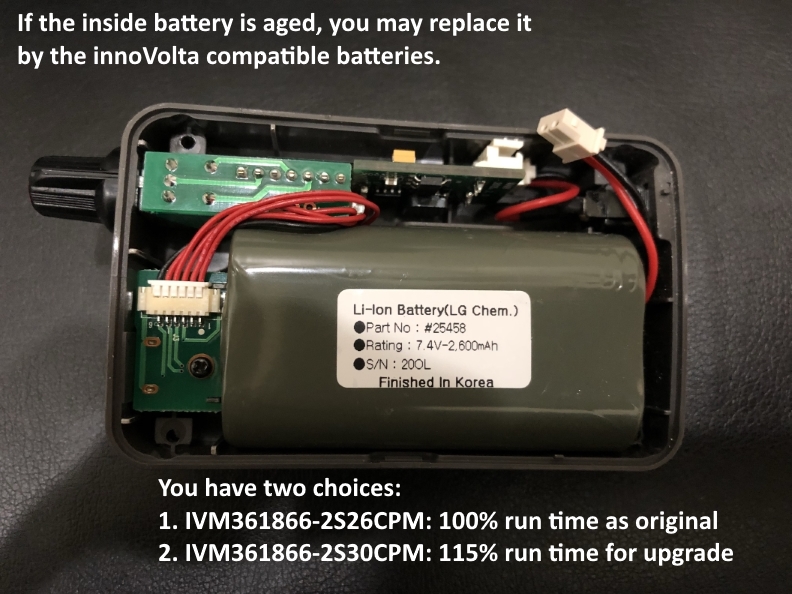

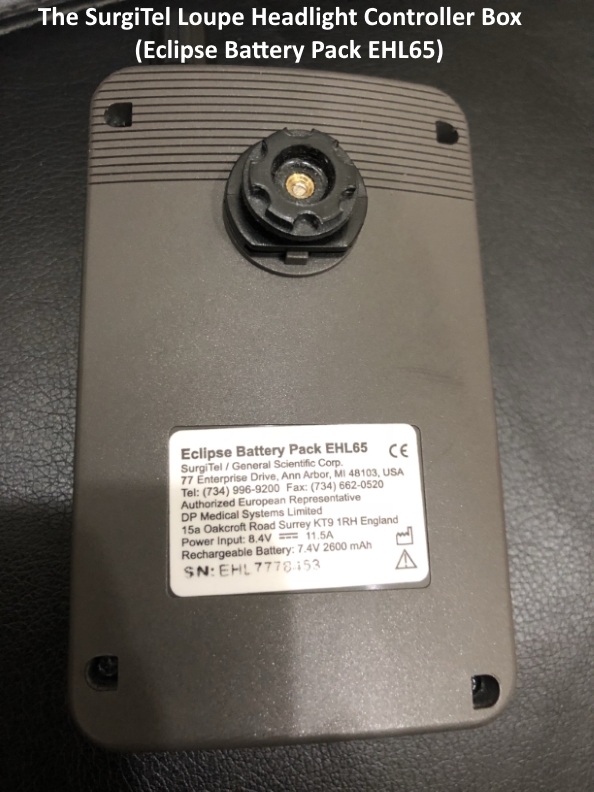

This is the battery replacement pack dedicated to replace the aged original battery for SurgiTel Loupe Headlight (Eclipse Battery Pack EHL65)

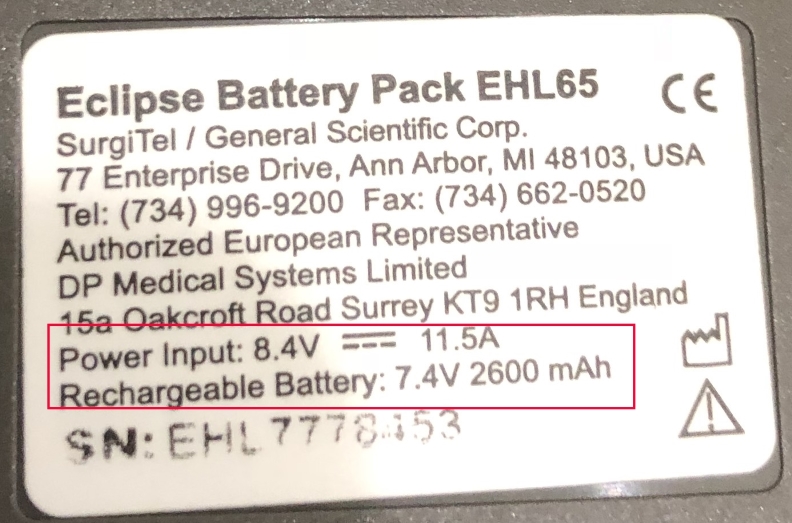

Note: The original battery is rated as 7.4 V 2,600 mAh

­

If your unit is ODYSSEY ANALOG battery pack for SurgiTel micro LED, please visit

Please contact us if you own a different Loupe Headlight and can’t find a compatible battery for replacement!

To know about innoVolta’s product capability, please visit

https://www.innovolta.com/about-us/


Specifications

  • Brand: innoVolta USA

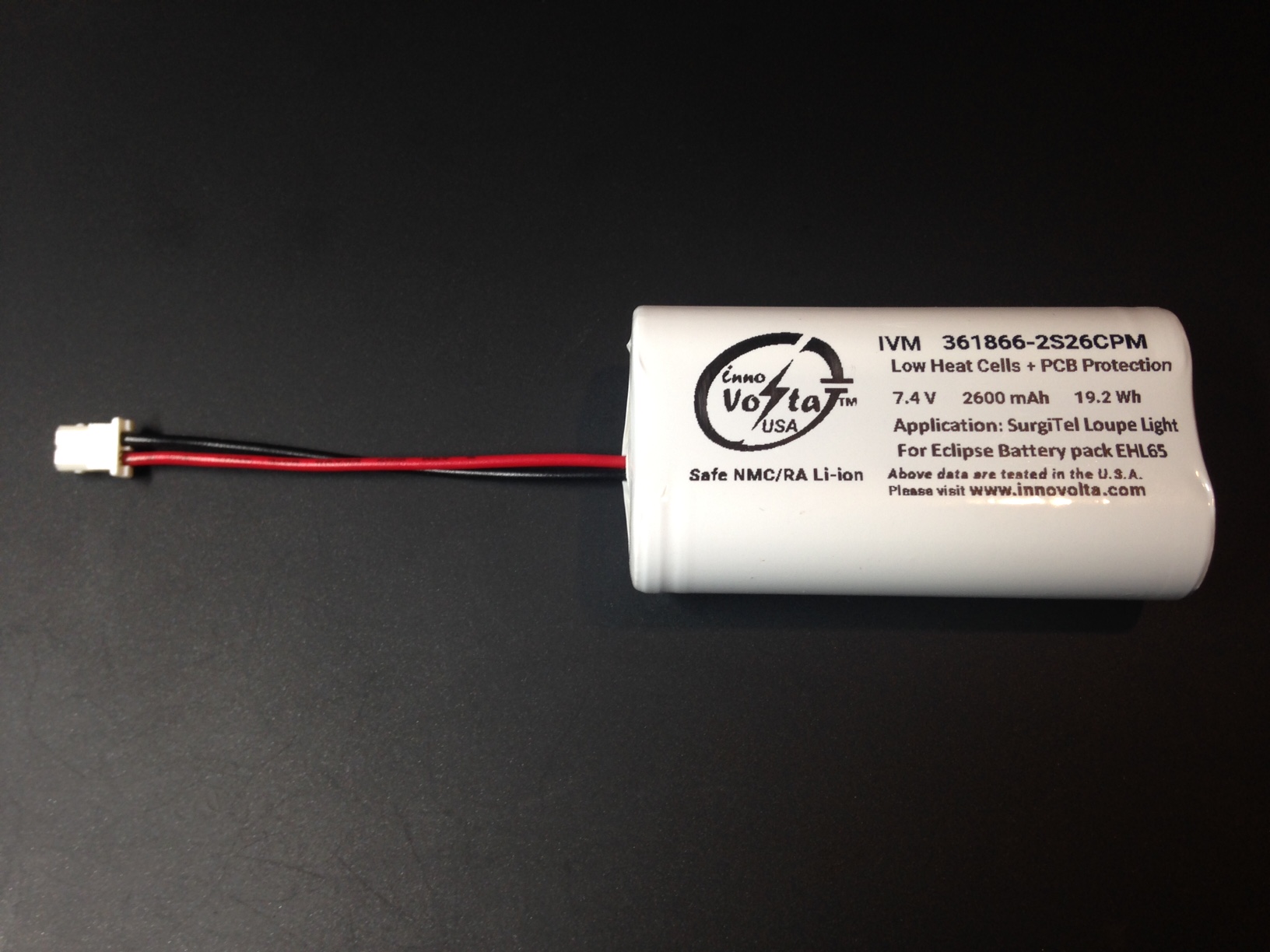

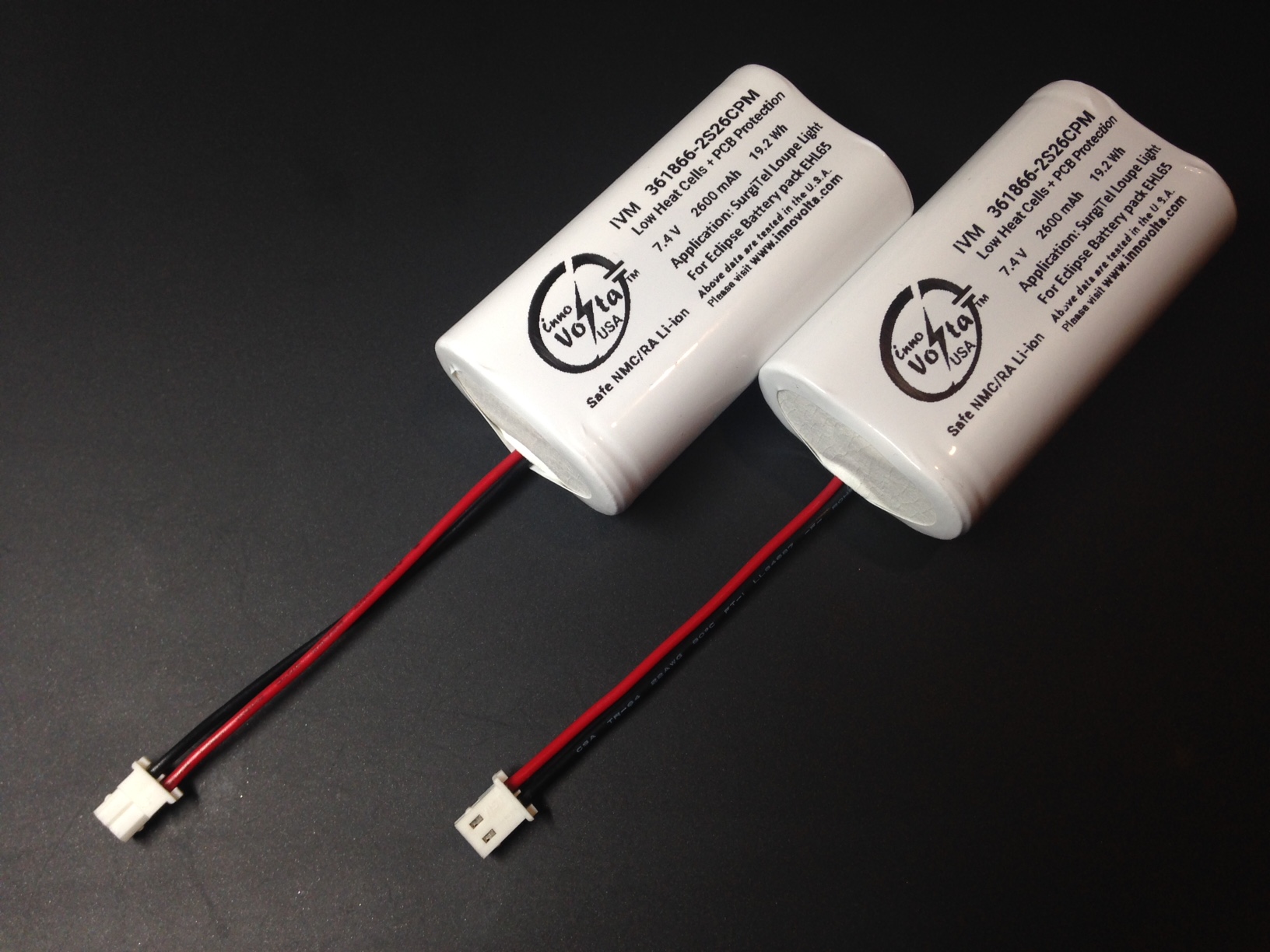

  • Standard Model: IVM361866-2S26CPM (100% Run Time)

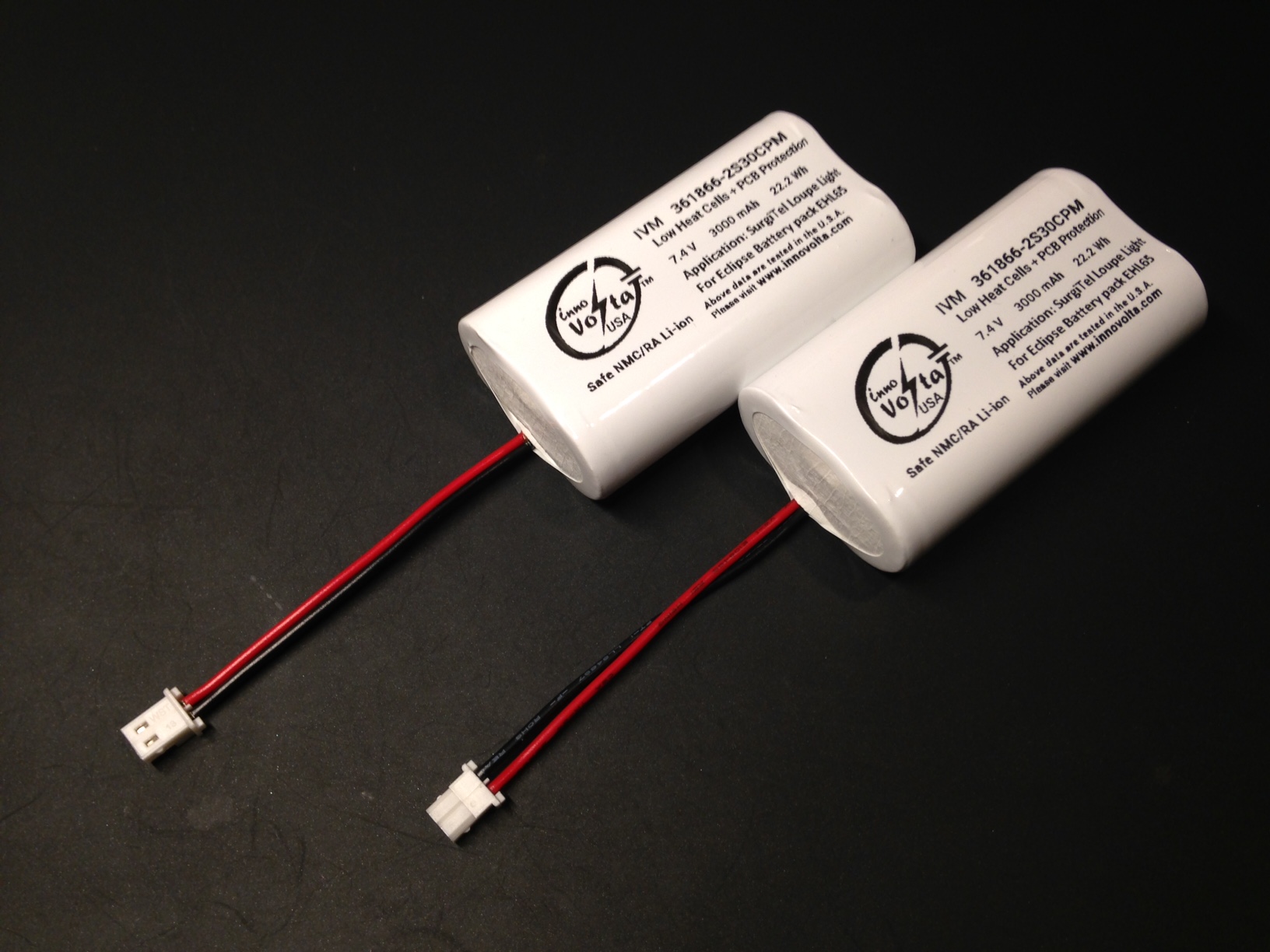

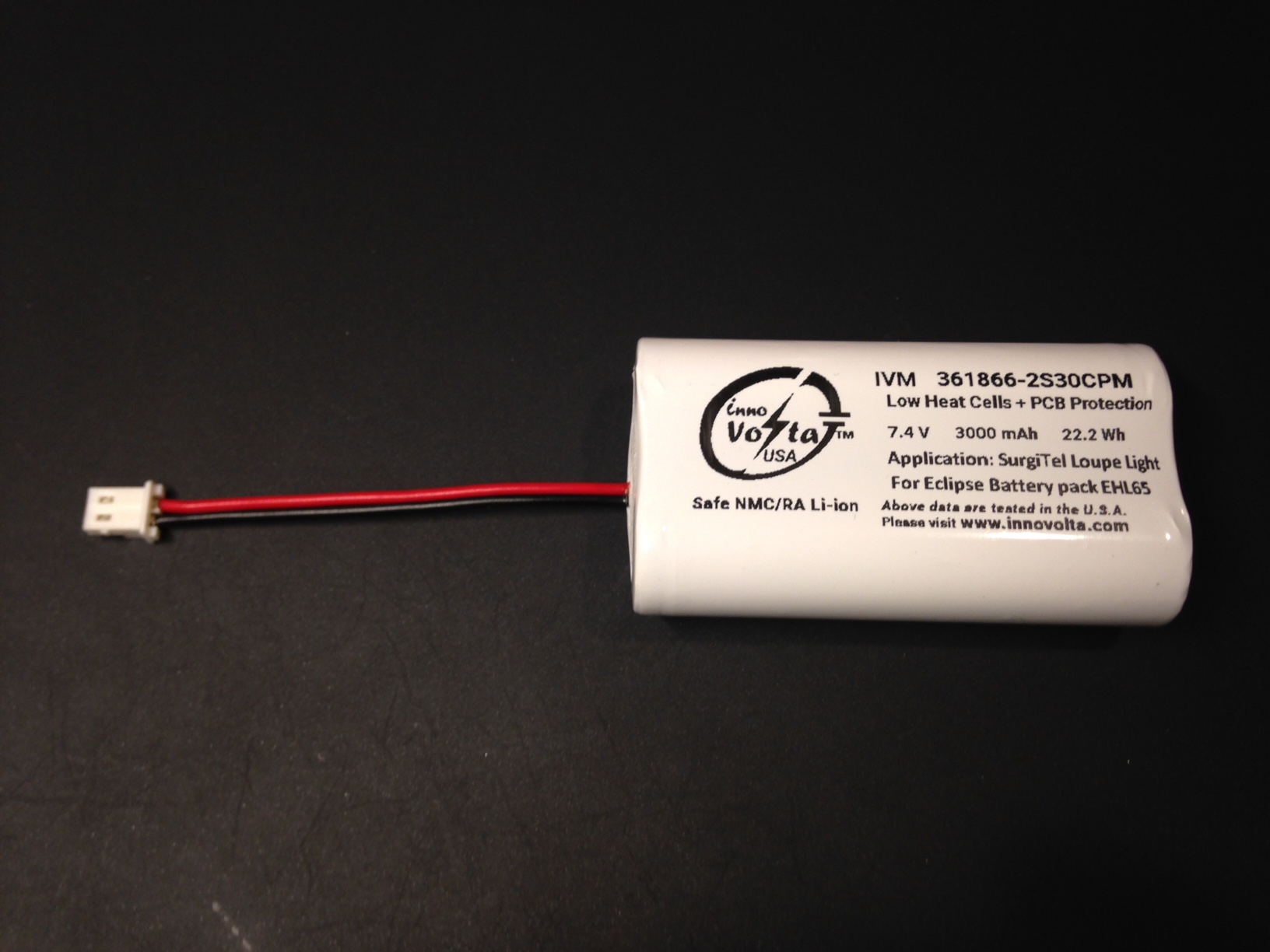

  • Upgrade Model: IVM361866-2S30CPM (115% Run Time)
  • Capacity: 2,600 mAh (Standard) or 3,000 mAh (Upgrade)
  • Energy: 19.2 Wh (Standard) or 22.2 Wh (Upgrade)
  • Nominal Voltage: 7.4 V
  • Charge Current: 1.3 A (Standard) or 1.5 A (Upgrade)
  • Short Circuit Protection Current: up to 11.5 A
  • Battery Pack Size (maximum): 37.0 mm Wide * 19.5 mm High * 66.5 mm Long
  • Weight: 91.7 g (average)
  • Connector: 2.5 mm pitch 2-circuit Molex 5264 connector housing with Molex 5263 crimp terminal
  • Wire: Red/Black, 2″ long, UL 1007,  22AWG, 80 degC, 300V, VW-1



Additional information

Weight 0.25 lbs
